A signal surge protector (SSP) is an electrical protection component used to protect signal lines and terminal equipment from lightning strikes and transient surges. Under normal circumstances, a signal surge protector exhibits high impedance, with no current flowing through it. However, when a lightning pulse or transient surge voltage occurs, it rapidly changes to low impedance, discharging the excess current to the ground, limiting the voltage at the equipment end and thus protecting it from damage.
Phone:
+8613014503930
Classification by medium: It can be divided into coaxial cable lightning arrester, twisted pair lightning arrester, optical fiber lightning arrester, universal terminal lightning arrester, etc.
Classification by line characteristics: including DC signal lightning arrester, switching signal lightning arrester, differential transmission lightning arrester, digital network lightning arrester, etc.
Classification by electrical characteristics: there are single-stage varistor type and double-stage composite lightning protection type, etc.
Working voltage: Different types of signal lightning arresters have different working voltages. For example, the working voltage of RJ45 interface lightning arresters is generally 5-48VDC.
Current carrying capacity: Indicates the maximum lightning current that the lightning arrester can withstand. For example, the current carrying capacity of the RJ45 interface lightning arrester is usually 5-20kA (8/20μs).
Transmission rate: For example, the transmission rate of the RJ45 interface lightning arrester can reach 100Mbps-10Gbps.
Insertion loss: Generally, the requirement is low, such as the insertion loss of the RJ45 interface lightning arrester is <0.5dB@100MHz, to avoid excessive impact on signal transmission.
Adopt temperature-controlled circuit breaker technology and built-in over current protection circuit to,completely avoid fire hazards;
The technology is exquisite and can work for a longtime in harsh environments such as acid, alkali, dust,salt spray and moisture;
Can monitor the working status of the lightning, protection module,backup protection switch, lightning strike information (number of lightning strikes, peak value, polarity,time),grounding resistance, am bient temperature and humidity Collect and upload data for temperature and carbon monoxide;
Equipped with a 10-inch LCD touch screen with intuitive and clear parameters and various alarm information,Ethernet interface.MODBUS-TCP standard protocol.
|

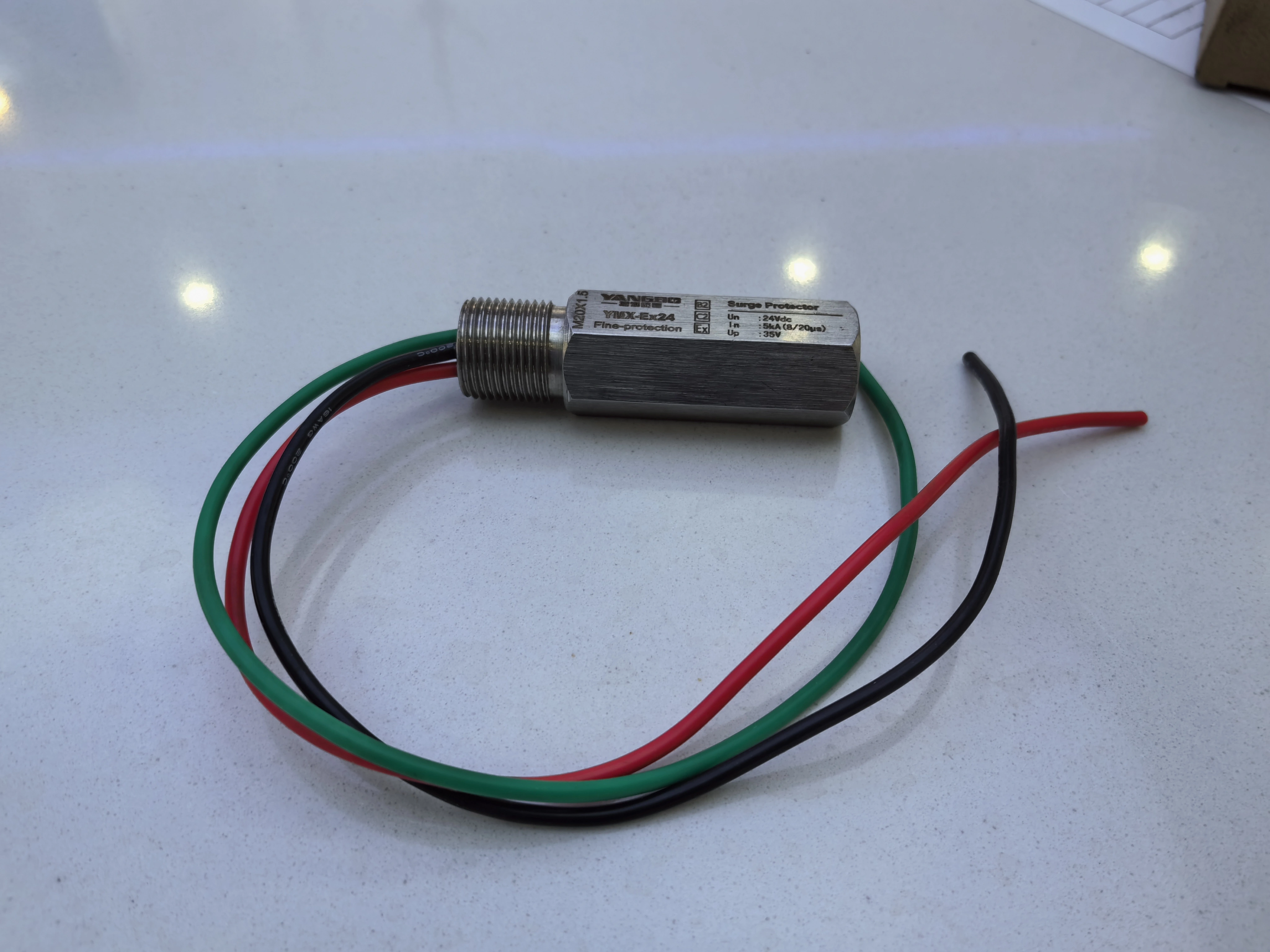

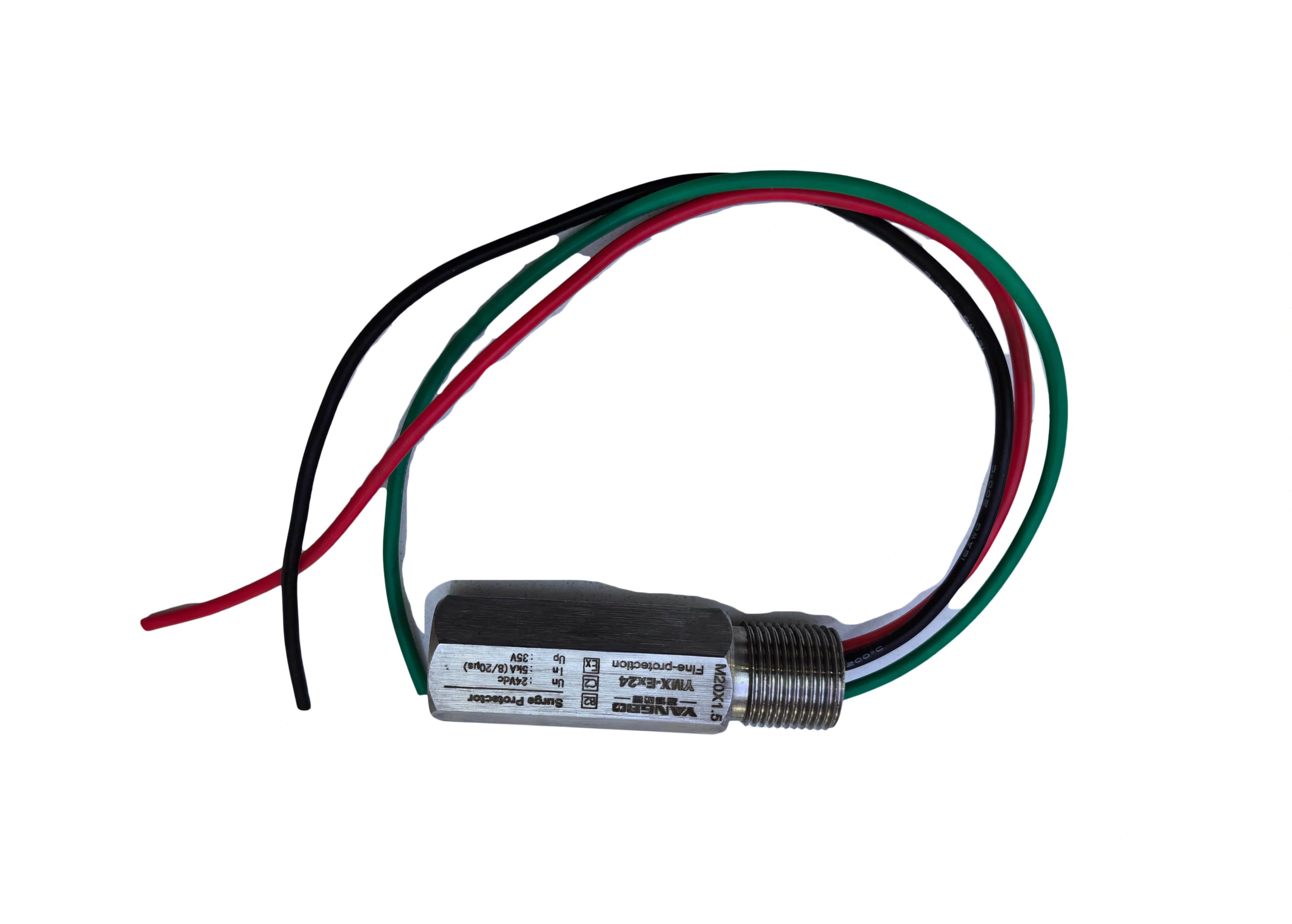

Signal lightning arrester
|
|
Nominal operating voltage Un
|
24Vdc |
Maximum continuous operating voltage Un
|
32Vdc |
Product size
|
75mm*27mm |
Shell material
|
SUS304 stainless steel + epoxy resin potting
|
Installation location
|
outdoor
|
Hui joy Technology Co., Ltd. has a strong economic foundation and superb professional technology. It is a comprehensive lightning protection company specializing in the sales of lightning protection products and the professional design and construction of lightning protection projects. The company has an exclusive R&D department, a production workshop, and a marketing team.
