The intelligent power supply lightning protection box is used to prevent damage caused by lightning over voltage and transient over voltage to the primary (Class B) power supply system and electrical equipment.
Phone:
006588662519

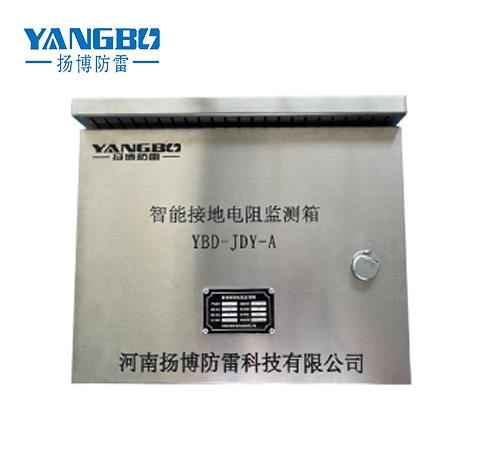

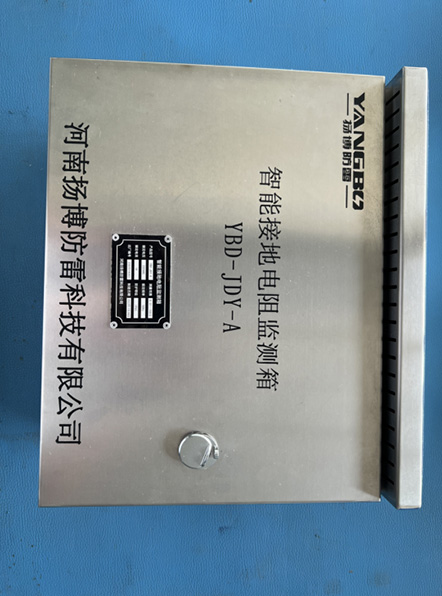

The intelligent ground resistance monitor in box is specially designed and manufactured for online monitoring of the connection status of the ground down conductor,loop ground resistance,and metal loop connection resistance.Online testing,non-contact measurement,ground wire passing through, no need for self test,real-time detection.The product is equipped with a 7-inch touch screen with intuitive and clear parameters, various alar min formation,and an Ethernet communication port(supports MODBUS-TCP communication protocol).
The intelligent lightning monitoring box is used for real-time monitoring of lightning strikes and lightning flow in lightning and down conductors,main feature:
It adopts temperature-controlled circuit breakertechnolog yand built-in over-current protection circuit to complete avoid fire hazards and displays the power supplys tatus; Easyto install and simple to maintain;
The technology is exquisite and can work for along time in harsh environments such as acid,alkali,dust,salts pray and moisture.
Monitor lightning information (number of lightning strikes, peak value, polarity,Q value, specific energy.time), ambient temperature and humidity for collection and data upload, Equipped with a 10-inch LCD touchscreen, all parameters are intuitive and clear, and equipped with various alarm information Ethernet Interface.MODBUS-TCP standard protocol.

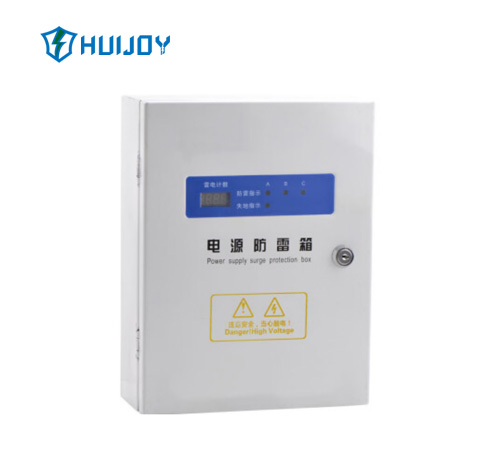

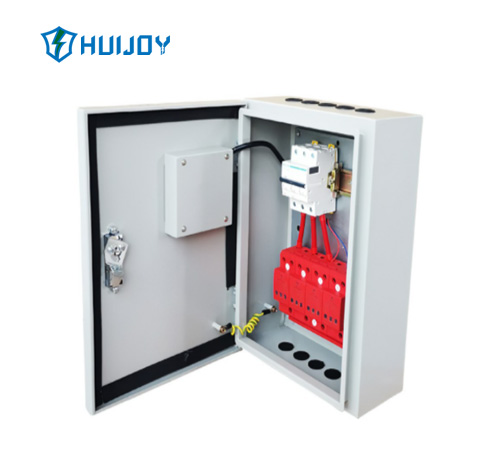

The intelligent power lightning protection box is a comprehensive power protection device that integrates lightning surge protection, power management, remote monitoring and intelligent diagnosis. It is widely used in communication base stations, traffic monitoring, photovoltaic power stations, wind farms, industrial control systems and other places with high requirements for power supply safety.
It not only has the basic functions of traditional lightning protection boxes, but also integrates the Internet of Things and intelligent technology to achieve real-time monitoring and remote management of power quality and lightning protection status.
Adopt temperature-controlled circuit breaker technology and built-in over current protection circuit to,completely avoid fire hazards;
The technology is exquisite and can work for a longtime in harsh environments such as acid, alkali, dust,salt spray and moisture;
Can monitor the working status of the lightning, protection module,backup protection switch, lightning strike information (number of lightning strikes, peak value, polarity,time),grounding resistance, am bient temperature and humidity Collect and upload data for temperature and carbon monoxide;
Equipped with a 10-inch LCD touch screen with intuitive and clear parameters and various alarm information,Ethernet interface.MODBUS-TCP standard protocol.
| Intelligent power lightning protection box | |
| Nominal operating voltage Ue | 230--440VAC |
| Maximum flow capacity Lmax (8/20us) | 80KA |
| Maximum tripping current | 3A |
| IP protection level | IP20 |
| Flame retardant grade, in line with UL94 | V0 |
| working environment | Temperature -40℃--+70℃ |
| Relative humidity ≤96% | |
| Altitude ≤ 3000M | |
