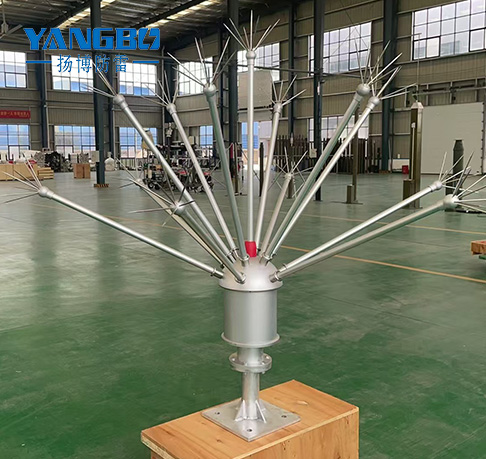

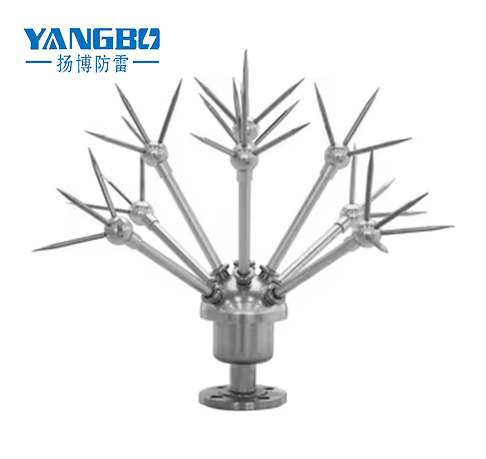

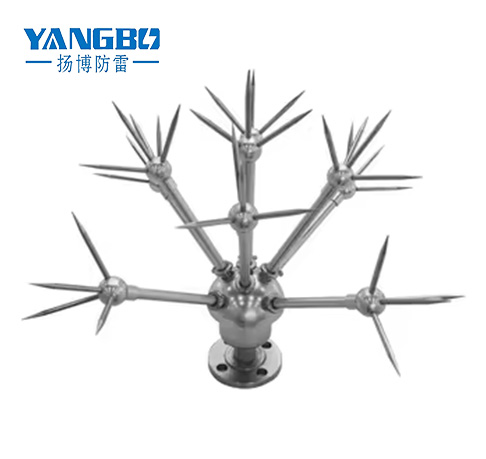

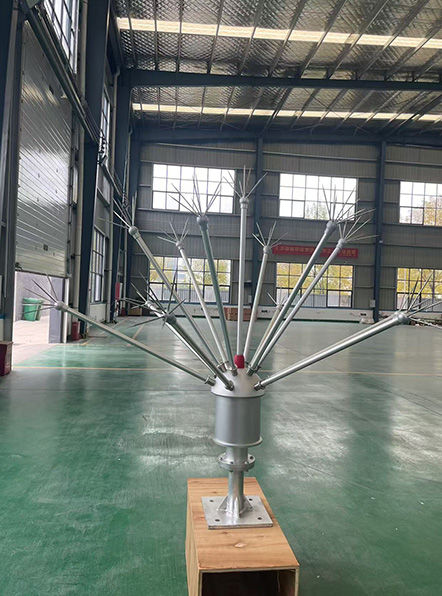

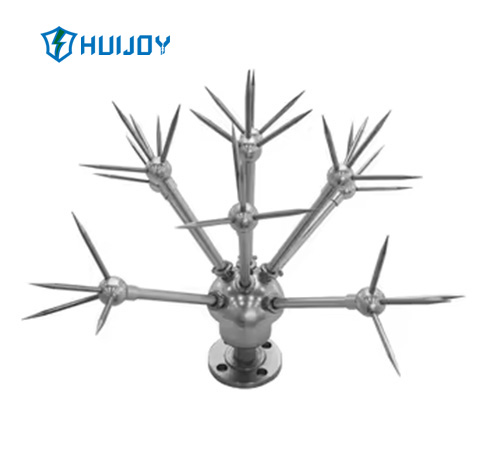

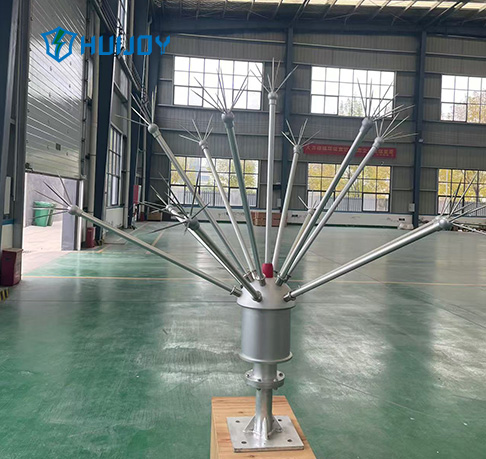

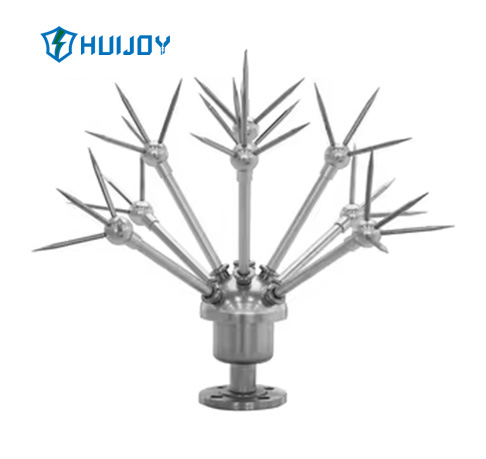

The lightning dispeller, also known as the lightning dispeller, is a new type of direct lightning protection device that can effectively reduce the threat of lightning to buildings, facilities and human activities.
Phone:
006588662519
1. Composition and structure of mine-driving device
The mine dispelling device mainly consists of the following three parts:
Ionization device: usually placed above the object to be protected, with many sharp electrodes used to generate corona ion flow under the action of the thundercloud electric field.
Connecting wire: used to connect the ionization device to the grounding device to ensure that the current can flow smoothly to the ground.
Grounding device: Set within the surface layer to collect ionized negative charges and guide them into the ground to prevent charge accumulation from causing lightning strikes.
2. Working principle of mine-driving device：
When the thundercloud electric field reaches a certain intensity, the ionization device of the lightning driving device will generate a corona ion flow, forming a corona ion layer above the lightning driving device and its protected objects. This corona ion layer can inhibit the formation and conduction of lightning and achieve efficient lightning protection. The specific process is as follows:
Ionization: In the strong electric field of thunderclouds, the potential difference between the ionization device and the nearby air will surge with the intensity of the electric field, causing the air near the needle tip in the field strength area to ionize, forming a large amount of space charge.
Charge neutralization: The ionized negative charges are absorbed by the grounding device, while the ionized positive charges are attracted and neutralized by the negative charges of the thundercloud, thereby preventing lightning from posing a direct threat to the protected object.
Corona effect: The corona ion layer continuously diffuses upward under the action of the thundercloud electric field and interacts with the thundercloud charge, making the cloud-ground plate equivalent to a leakage capacitor, effectively inhibiting the charging of the thundercloud to the discharge breakdown level, and weakening the thundercloud. Charge accumulation on the cloud's descending leader.
Inhibit the formation and conduction of lightning through ionization and corona effects.
Effectively prevent the occurrence of direct lightning strikes, reduce the intensity of induced lightning surges, and provide complete lightning protection for various facilities and places.
Since it does not directly attract lightning, the lightning dispelling device has higher safety during use and will not cause potential threats to buildings and personnel.
| model | YBT-CLD60 |
| Protection method | Non-lightning-termination divergent current greater than 5mA active lightning drive |
| Grounding method | The grounding does not need to discharge the lightning current through a small resistance grounding body |
| Overall structural form | Assembled |
| Material | alloy |
| Service life | More than 30 years |
| Windproof level | Level 12 and above |
| Device quality | No more than 25KG |
